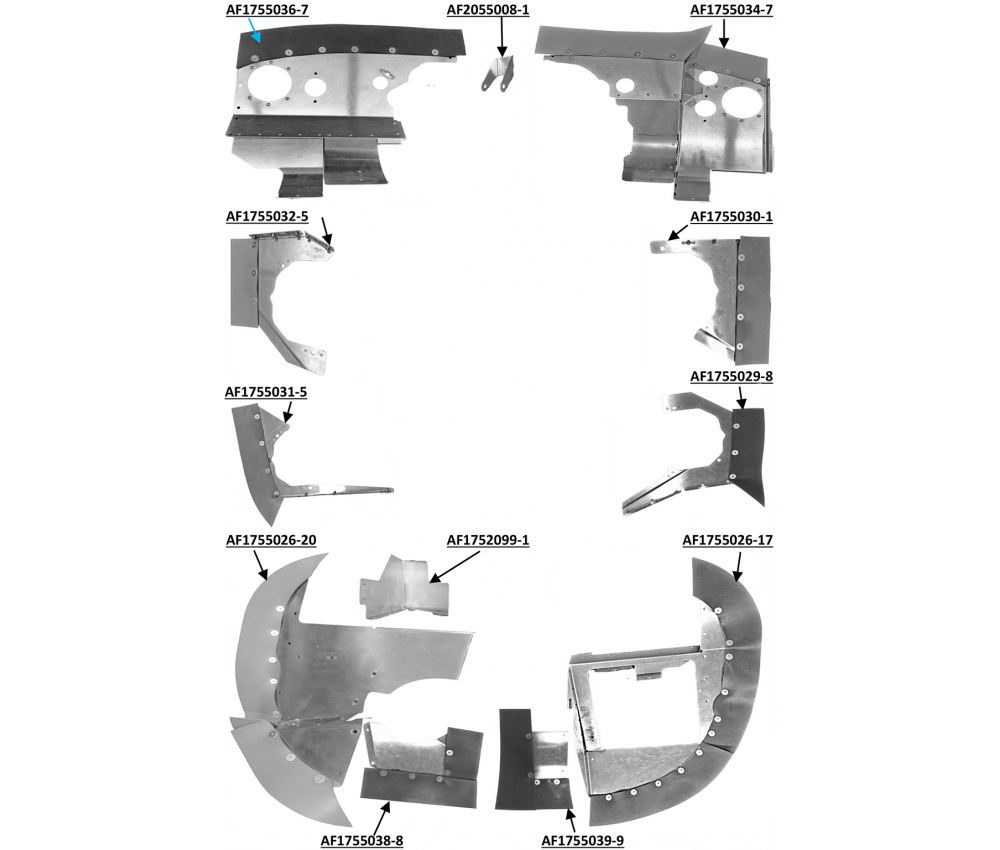

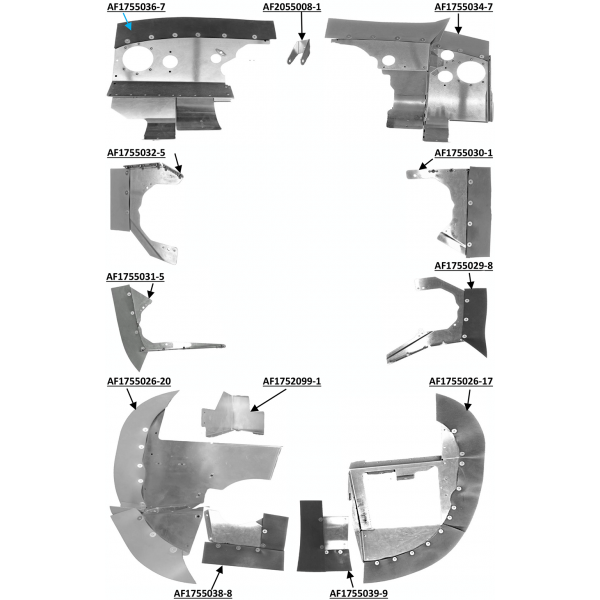

Cessna C177 (1973-74) Engine Baffle Set

Cessna C177 (73-74) Complete Engine Baffle Set

These baffles are FAA PMA Approved

About these baffles in general:

• Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
• Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
• All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
• The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
• We also sell seal kits if your metal baffle pieces are in good shape .

Note:

• If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
• Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

To view our FAA PMA Approval supplements, click here and search PQ2644CE, along with the Airforms assembly part number.

PQ2644CE is the Airforms manufacturer identification number
