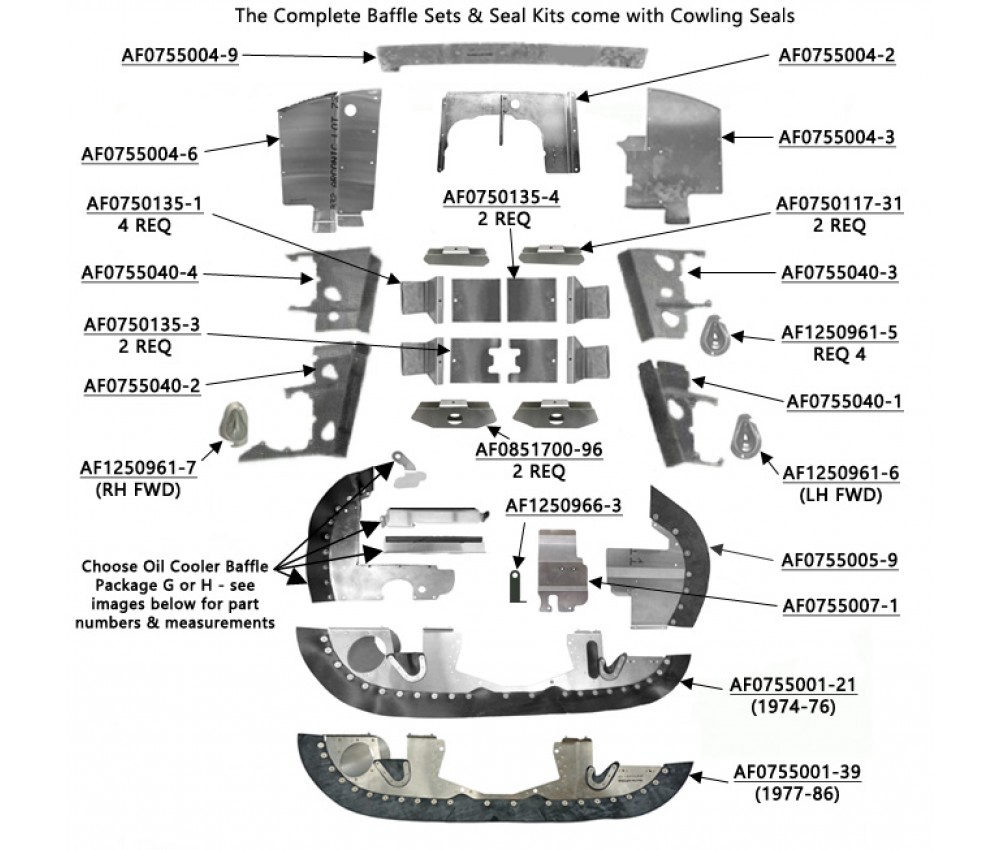

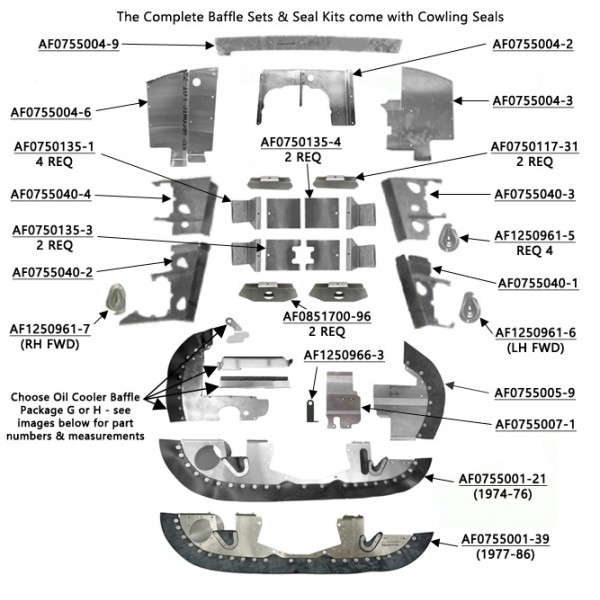

Cessna C182 Late (1974-86) Complete Engine Baffle Set - Oil Cooler Package G or H

Cessna C182 (1974-86) with Oil Cooler Baffle Package - Complete Engine Baffle Set

• These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install
• Includes Cowling Seals of the following sizes:

Qty 1: 8" x 2.25" Strip

Qty 1: 10" x 2.25" Strip

Qty 1: 14" x 5.5" Strip

Qty 1: 14.5" x 2.25" Strip

Qty 1: 22.5" x 3" Strip

Qty 1: 25" x 3" Strip

Qty 1: 30" x 3" Strip

General Information about Airforms Baffles:

• Mounting hardware is not included (no nuts, bolts, screws, washers, retaining springs, Tinnerman clips)
• It is the installer's responsibility to adjust the baffles to fit for any aftermarket components (starters, alternators, exhaust, etc.)
• Baffles are made of 6061-T6 aluminum with many improvements: stainless steel brackets where needed, hard rivet construction, 1/2" thick washers used for installing seals, and an improved fit to increase engine cooling
• Designed to replace OEM and are individually interchangeable
• Seals are attached. Seal material is .09" thick fiberglass-reinforced, high temp silicone
• Seal kits are also offered if your metal baffle pieces are in good shape

To view our FAA PMA Approval supplements, click here and search PQ2644CE, along with the Airforms assembly part number.

PQ2644CE is the Airforms manufacturer identification number
