C208/C208B Torque Link Repair STC

WHAT'S NEEDED TO OVERSIZE:

• Torque Link STC (STC is FAA & EASA approved)
• Reamer Kit (reaming is done by hand - tap handle is provided with kits)
• 2 Oversized Pins
• 1 Oversized Bolt
• Bushings if necessary
• Spacing washers if necessary

​ABOUT:

• This STC helps keep the nose gear linkage tight and shimmy-free and reduces the number of nose gear swaps. The gear is able to remain on the aircraft.

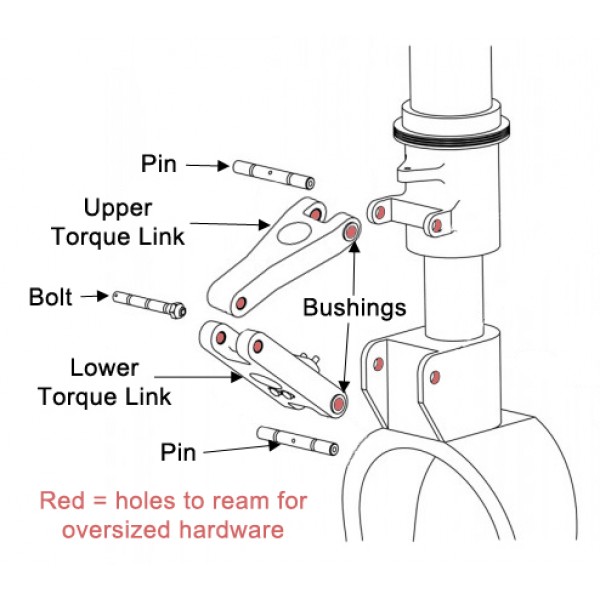

• STC allows reaming the torque link holes/bushings and holes on nose gear, and allows installation of oversize torque link pins and bolts (Cessna Part Numbers 2643091-1 & 2643092-1), to remove joint slop, extending nose gear life
• Reaming can be achieved without removing nose gear
• Precision machined pins and bolts are cad plated for long life
• Oversize Tool kits available with tap handle & self-piloting reamers
• Shim washers available to prevent lateral play

To view our FAA PMA Approval supplements, click here and search PQ2644CE, along with the Airforms assembly part number.

PQ2644CE is the Airforms manufacturer identification number
