Piper PA-28R-200 & PA-28R/28RT-201 Complete Engine Baffle Set
Price:
$2,560.76
For Aircraft by: Piper
For Aircraft Model(s) PA-28R-200
For Aircraft Model(s) PA-28R-200
Eligibility: PA28R-200: 1969-76 S/N 28R-7235001 thru 7635545 // PA28R-201: 1977 & on S/N: 28R-7737001 & on // PA28RT-201: 1979 S/N: 28R-7918001 thru 7918306
Engine: PA28R-200: Lycoming IO-360-C1C // PA28R/28RT-201: Lycoming IO-360-C1C6
INDIVIDUAL COMPONENTS ONLY W/ BLACK SEALS AND NO POWDER COATING. PLEASE CALL FOR CUSTOM OPTIONS.

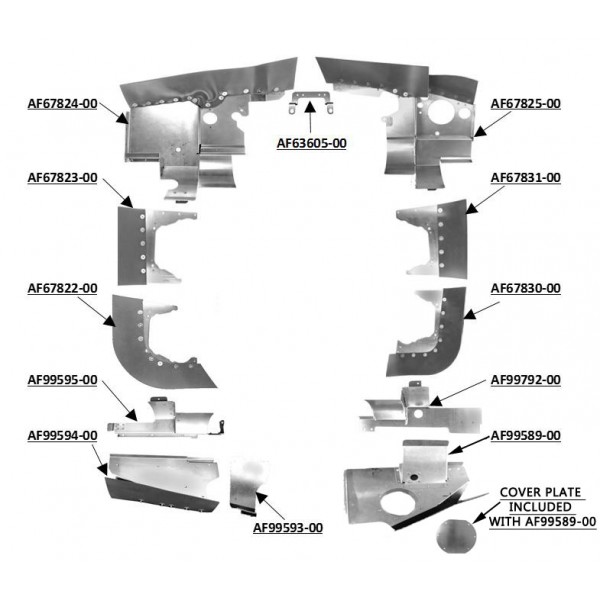

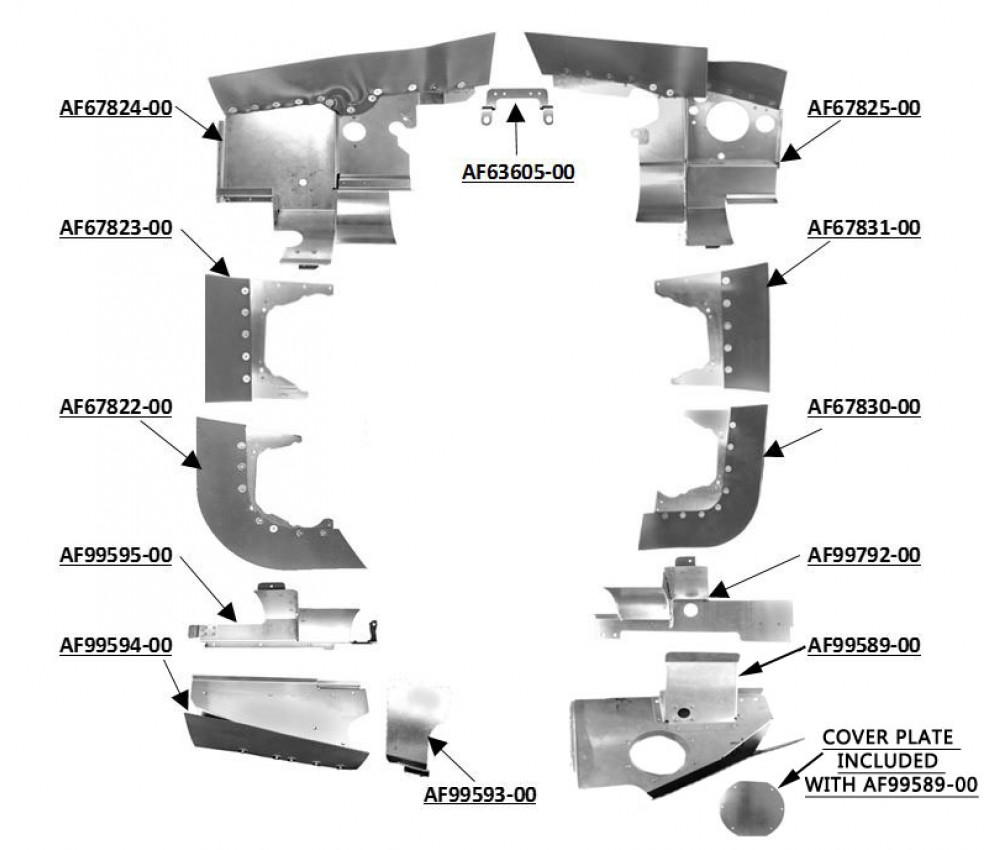

Piper PA28R-200, PA28R-201 & PA28RT-201 Complete Engine Baffle Set
These baffles are FAA PMA approved, have the silicone seals attached, and arrive ready to install
General Information about Airforms Baffles:
- Mounting hardware is not included (no nuts, bolts, screws, washers, retaining springs, Tinnerman clips)
- It is the installer's responsibility to adjust the baffles to fit for any aftermarket components (starters, alternators, exhaust, etc.)
- Baffles are made of 6061-T6 aluminum with many improvements: stainless steel brackets where needed, hard rivet construction, 1/2" thick washers used for installing seals, and an improved fit to increase engine cooling
- Designed to replace OEM and are individually interchangeable
- Seals are attached. Seal material is .09" thick fiberglass-reinforced, high temp silicone
- Seal kits are also offered if your metal baffle pieces are in good shape
| Eligibility | PA28R-200: 1969-76 S/N 28R-7235001 thru 7635545 // PA28R-201: 1977 & on S/N: 28R-7737001 & on // PA28RT-201: 1979 S/N: 28R-7918001 thru 7918306 |
| Engine | PA28R-200: Lycoming IO-360-C1C // PA28R/28RT-201: Lycoming IO-360-C1C6 |
