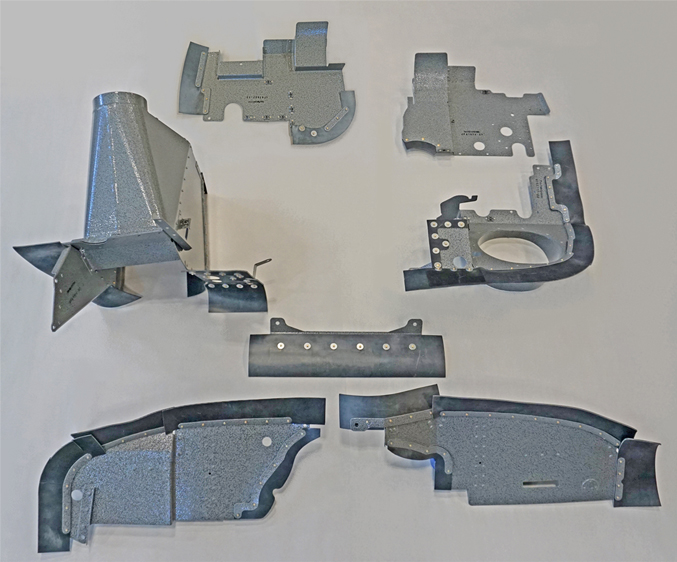

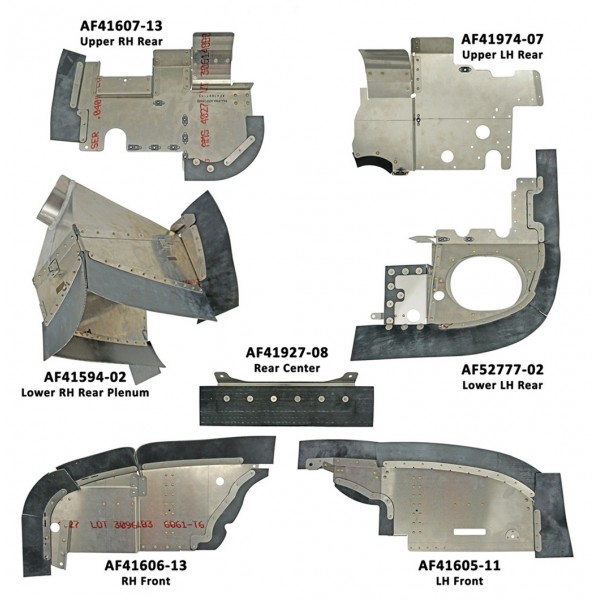

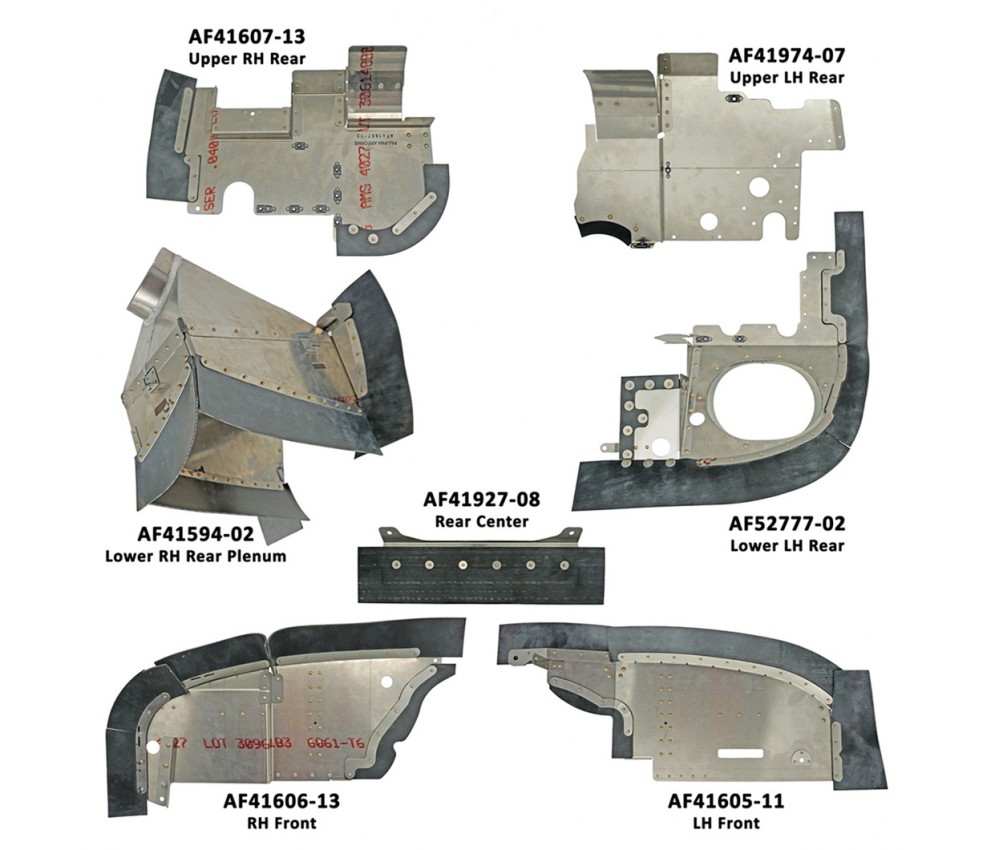

Piper PA-31-350 Chieftain Complete Engine Baffle Set

Mounting hardware is not included (no nuts, bolts, screws, washers, retaining springs, Tinnerman clips)
It is the installer's responsibility to adjust the baffles to fit for any aftermarket components (starters, alternators, exhaust, etc.)
Baffles are made of 6061-T6 aluminum with many improvements: stainless steel brackets where needed, hard rivet construction, 1/2" thick washers used for installing seals, and an improved fit to increase engine cooling
Designed to replace OEM and are individually interchangeable
Seals are attached. Seal material is .09" thick fiberglass-reinforced, high temp silicone
Seal kits are also offered if your metal baffle pieces are in good shape

Call for shipping costs. We primarily use FedEx as our carrier.
A shipping cost estimate amount will be noted on your online order. Please keep in mind that the actual cost can fluctuate.

International shipment will accrue extra customs, duties, fees, and taxes not explicitly calculated by Airforms

8130-3 Form (Authorized Release Certificate / Airworthiness Approvals)

This form must be requested at the time of ordering and cannot be added to articles after they have left our facility. Standard practice will be one form issued per order and will cover all the approved parts for an order; unless additional forms are also requested. 8130-3 forms will delay any shipment between 1 and 3 days.
These approval forms are not included in the standard kit price.
Domestic 8130-3 form - $30.00 USD
Export 8130-3 form - $80.00 USD
Each additional form - $30.00 USD

To view our FAA PMA Approval supplements, click here and search PQ2644CE, along with the Airforms assembly part number.

PQ2644CE is the Airforms manufacturer identification number
