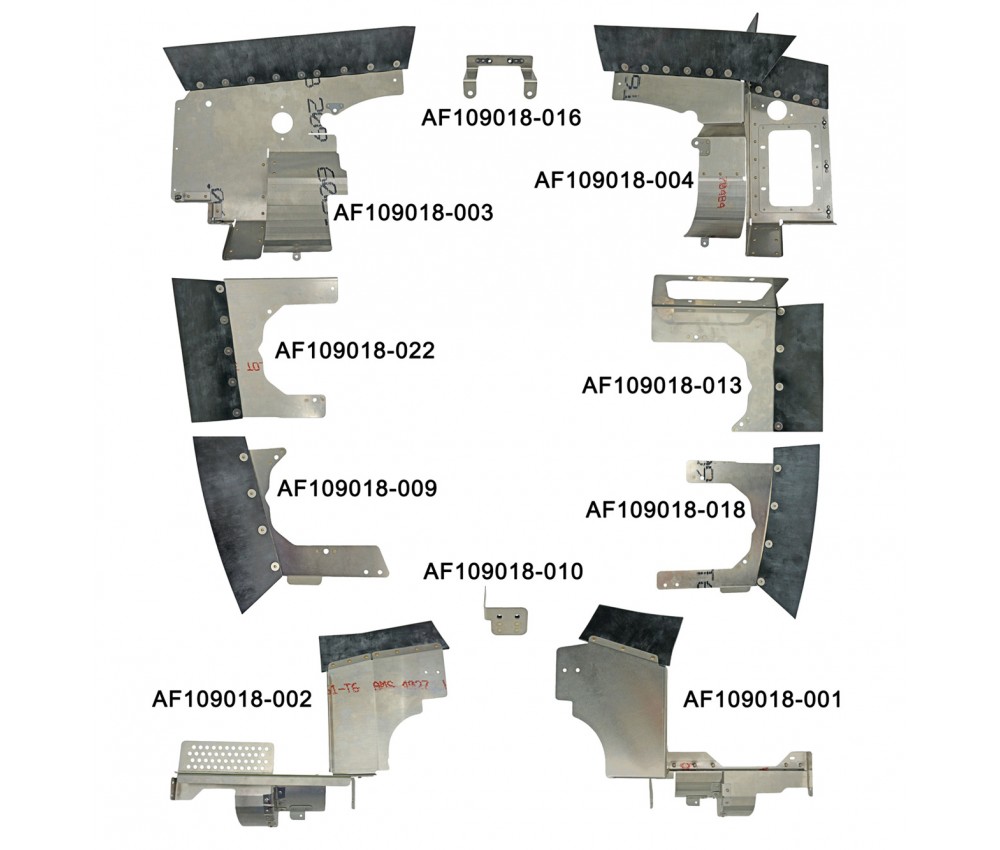

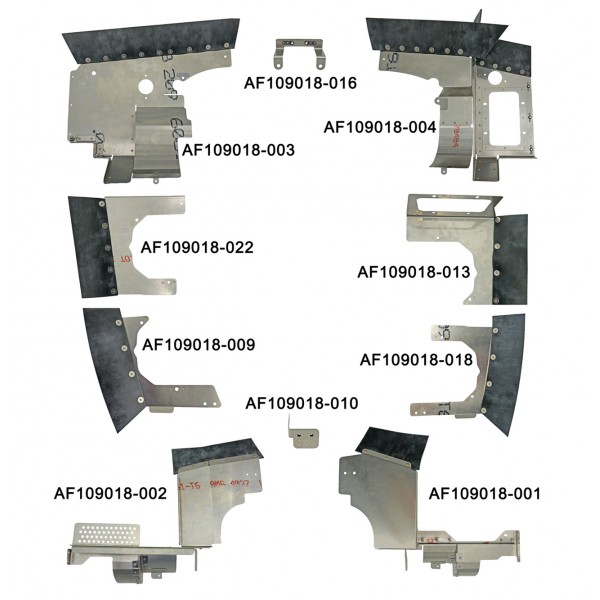

Piper PA-28-181 Archer Three Fuel Injected - Complete Engine Baffle Set

Serial Numbers: 2843821, 2843852, 2843854 thru 2843857, 2843861, 2843862, 2843868 thru 2843871, 2843873, 2843881 thru 2843888, 2843891 thru 2843899, 2843920 thru 2843925, 2843932 thru 2843935, 2881001 thru 2881012, 2881021 thru 2881028, 2881030 thru 2881040, 2881042 thru 2881054, 2881071, 2881083 thru 2881090, 2881092 thru 2881106, 2881109, 2881110, 2881119 thru 2881125, 2881130 thru 2881138, 2881142 thru 2881157, 2881159 thru 2881169, 2881181 thru 2881187, 2881188, 2881196, 2881197, 2881208 thru 2881211, 2881217 thru 2881220, 2881228 thru 2881231, 2881238, 2881242, 2881243, 2881245, 2881246, 2881251 thru 2881253, 2881260 thru 2881310, 2881319 thru 2881335, 2881340 thru 2881360, 2881368 thru 2881370, 2881372 thru 2881384, 2881389 thru 2881400, 2881405-2881410, 2881414 thru 2881417, 2881425 thru 2881434.

These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install

General Information about Airforms Baffles:

Mounting hardware is not included (no nuts, bolts, screws, washers, retaining springs, Tinnerman clips)
It is the installer's responsibility to adjust the baffles to fit for any aftermarket components (starters, alternators, exhaust, etc.)
Baffles are made of 6061-T6 aluminum with many improvements: stainless steel brackets where needed, hard rivet construction, 1/2" thick washers used for installing seals, and an improved fit to increase engine cooling
Designed to replace OEM and are individually interchangeable
Seals are attached. Seal material is .09" thick fiberglass-reinforced, high temp silicone
Seal kits are also offered if your metal baffle pieces are in good shape

Call for shipping costs. We primarily use FedEx as our carrier.
A shipping cost estimate amount will be noted on your online order. Please keep in mind that the actual cost can fluctuate.

International shipment will accrue extra customs, duties, fees, and taxes not explicitly calculated by Airforms

8130-3 Form (Authorized Release Certificate / Airworthiness Approvals)

This form must be requested at the time of ordering and cannot be added to articles after they have left our facility. Standard practice will be one form issued per order and will cover all the approved parts for an order; unless additional forms are also requested. 8130-3 forms will delay any shipment between 1 and 3 days.
These approval forms are not included in the standard kit price.
Domestic 8130-3 form - $30.00 USD
Export 8130-3 form - $80.00 USD
Each additional form - $30.00 USD

To view our FAA PMA Approval supplements, click here and search PQ2644CE, along with the Airforms assembly part number.

PQ2644CE is the Airforms manufacturer identification number
